product description:

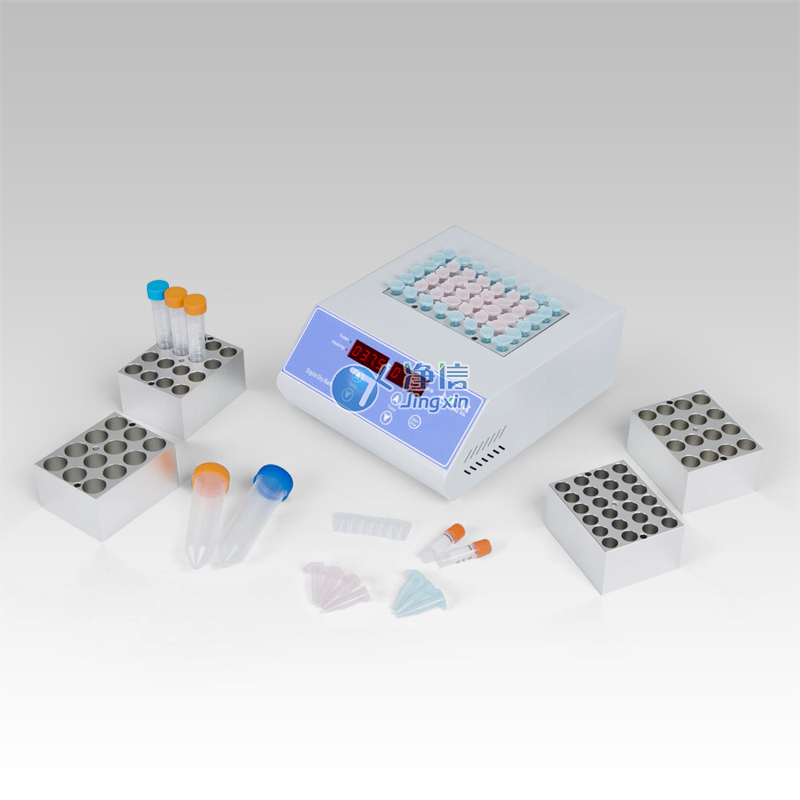

JX100-1 is a high-temperature dry-type thermostat controlled by a microcomputer. It uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range, and high precision. It can be widely used Sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc.
Adopting two-level redundant hardware circuit design, with unique intelligent software algorithm, high temperature control accuracy, stable and reliable operation.
Features:
◆Real-time temperature display and time decreasing display;
◆Automatic fault detection and buzzer alarm function;
◆With temperature deviation calibration function;
◆Convenient module replacement, easy to clean and disinfect;
◆Built-in over-temperature protection device;
◆Two-level redundant hardware circuit design, more reliable to use;
technical parameter:
Main parameters | Parameter range |
Temperature control range | Room temperature+5℃~130℃ |
Temperature stability | ≤±1℃ (@100℃~150℃) |
Large temperature difference of the module | 0.3℃(@40℃) |
Display accuracy | 0.1℃ |
voltage | AC 220V |
Dimensions | 260X220X100 mm |
Heating time | ≤30min (From 40℃ to 150℃) |
Temperature stability | ≤±0.5℃ (@40℃~100℃) |
Module temperature uniformity | ≤±0.5℃ |
Long time setting | 99h59min |
power | 400W |
weight | 5KG |
Optional modules:
Model | Test tube diameter | Test tube number |
MD01 | 6mm（47mm）Hole depth | 48 |
MD02 | 7mm（47mm）Hole depth | 48 |
MD03 | 10mm（47mm）Hole depth | 24 |
MD04 | 12mm（47mm）Hole depth | 24 |
MD05 | 13mm（47mm）Hole depth | 24 |
MD06 | 15mm（47mm）Hole depth | 16 |
MD07 | 16mm（47mm）Hole depth | 16 |
MD08 | 19mm（47mm）Hole depth | 12 |
MD09 | 20mm（47mm）Hole depth | 12 |
MD10 | 26mm（47mm）Hole depth | 8 |
MD11 | 28mm（47mm）Hole depth | 4 |
MD12 | 40mm（47mm）Hole depth | 3 |
MD13 | 0.2ml (Centrifuge tube) | 48 |
MD14 | 0.5ml (Centrifuge tube) | 48 |
MD15 | 1.5ml (Centrifuge tube) | 24 |
MD16 | 2.0ml (Centrifuge tube) | 24 |
Custom module | Sample tube specifications provided by the customer | —— |
